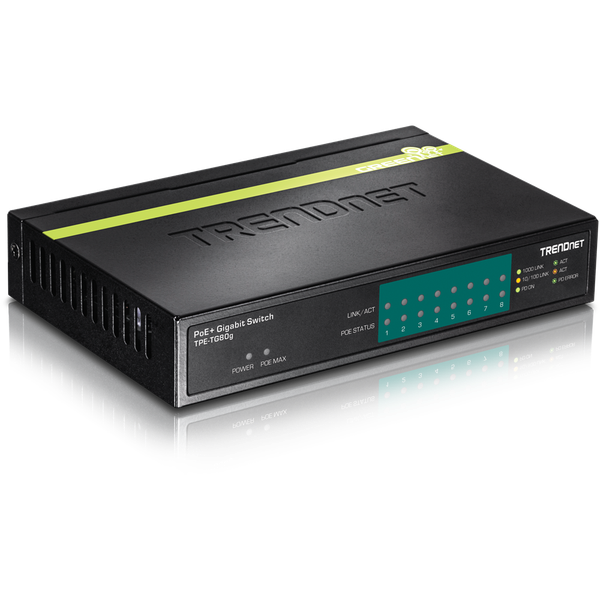

TPE-TG80g (Version v3.1R)
- 8 x Gigabit PoE+ ports
- 123 W PoE power budget
- 16 Gbps switching capacity
- Sturdy metal switch
- Plug and Play installation
| Standards | - IEEE 802.1p QoS
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3af (15.4 Watts/port)
- IEEE 802.3at (30 Watts/port)
- IEEE 802.3az
|
| Device Interface | - 8 x Gigabit PoE/PoE+ ports
- LED indicators
|
| Data Transfer Rate | - Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
- Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
- Gigabit: 2000 Mbps (full duplex)
|
| Performance | - Data RAM Buffer: 128 KB
- Switch Fabric: 16 Gbps
- MAC Address Table: 8 K entries
- Forwarding rate: 11.9 Mpps (64-byte packet size)
- Jumbo Frame: 9 KB
|
| Special Features | - GREENnet energy saving technology
- Input: 110-240 V AC, 50/60 Hz, 0.75 A
- Output: 54 V DC, 2.77 A
- Consumption: 5.3 Watts (Max. without PD)
|
| PoE | - PoE budget: 123 Watts
- Pin 3, 6 for power+ and pin 1, 2 for power- (mode A)
|
| Operating Temperature | |
| Operating Humidity | |
| Dimensions | - 150 x 96 x 28 mm (5.9 x 3.8 x 1.1 in.)
|
| Weight | |
| Certifications | |
| Warranty | |
| PACKAGE CONTENTS |
- TPE-TG80g
- Quick Installation Guide
- Power adapter (54 V DC, 2.77 A)
|
