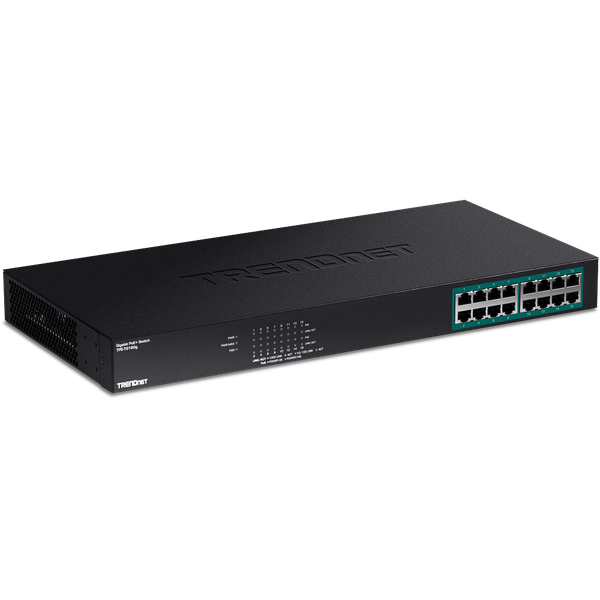

TPE-TG160g (Version v2.0R)
- 16 x Gigabit PoE+ ports
- 32Gbps switching capacity
- 246W PoE power budget
- IEEE 802.3af/at compliant
- Smart Fans
- Reduces equipment cost by delivering data and power over existing network cables
- 1U 19” rack mountable metal housing with brackets included
- Internal power supply
| Standards | - IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
|
| Device Interface | - 16 x Gigabit PoE+ ports
- LED indicators
|
| Data Transfer Rate | - Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2000Mbps (full duplex)
|
| Performance | - Data RAM Buffer: 512KB
- Switch Fabric: 32Gbps
- MAC Address Table: 8K entries
- Forwarding rate: 23.8Mpps (64-byte packet size)
- Jumbo Frame: 10KB
|
| Power | - Input: 100 – 240V AC, 50/60Hz, internal power supply
- Max. consumption: 14.9W (no PD)
|
| PoE | - PoE budget: 246W
- PoE Mode A: Pins 1, 2, 3, and 6 for power
- Over current protection
- Short circuit protection
|
| Fan/Acoustics | - Quantity: 2
- Max. noise Level: 26dB
|
| MTBF | |
| Operating Temperature | - 0° – 40° C (32° – 104° F)
|
| Operating Humidity | |
| Dimensions | - 440 x 210 x 44mm (17.3 x 8.3 x 1.8 in.)
|
| Weight | |
| Certifications | |
| Warranty | |
| PACKAGE CONTENTS |
- TPE-TG160g
- Quick Installation Guide
- Rack mount kit
- Power cord (1.8m/6 ft.)
|
