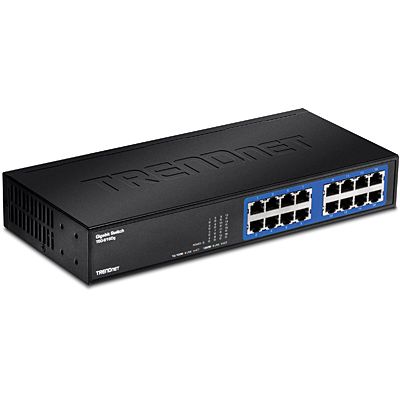

TEG-S16Dg (Version v2.0R)
- GREENnet technology reduces power consumption by up to 70%*
- 16 x Gigabit RJ-45 ports
- Sturdy metal desktop switch with built-in power supply
- 32 Gbps forwarding capacity
| Standards | - IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-TX
- IEEE 802.3ab 1000Base-T
- IEEE 802.3x Flow Control
- IEEE 802.3az Energy Efficient Ethernet
|
| Network Media | - Ethernet: Cat. 5 up to 100 m
- Fast Ethernet: Cat. 5 and 5e up to 100 m
- Gigabit Ethernet: Cat. 5e and 6 up to 100 m
|
| Data Rate | - Ethernet: 10 Mbps / 20 Mbps (half / full-duplex)
- Fast Ethernet: 100 Mbps / 200 Mbps (half / full-duplex)
- Gigabit Ethernet: 2000 Mbps (full-duplex)
|
| Protocol / Topology | |
| Power Consumption | |
| Switch Fabric | |
| Interface | - 16 x 10/100/1000 Mbps Auto-MDIX RJ-45 ports
|
| Data RAM Buffer | |
| Jumbo Frame Support | |
| Diagnostic LED | - Power, 10/100 Mbps Link / ACT, 1000 Mbps Link / ACT
|
| Power | - 100~240 VAC, 50/60 Hz Internal universal switching power
|
| Dimension | - 280 x 125.8 x 44 mm (11 x 5 x 1.7 in.)
|
| Weight | |
| Temperature | - Operating: 0° ~ 40° C (32° ~ 104° F)
- Storage: -10° ~ 70° C (14° ~ 158° F)
|
| Humidity | - Max. 90% (non-condensing)
|
| Certifications | |
| Warranty | |
| PACKAGE CONTENTS |
- TEG-S16Dg
- Quick Installation Guide
- Power cord (1.8 m / 6 ft.)
|
