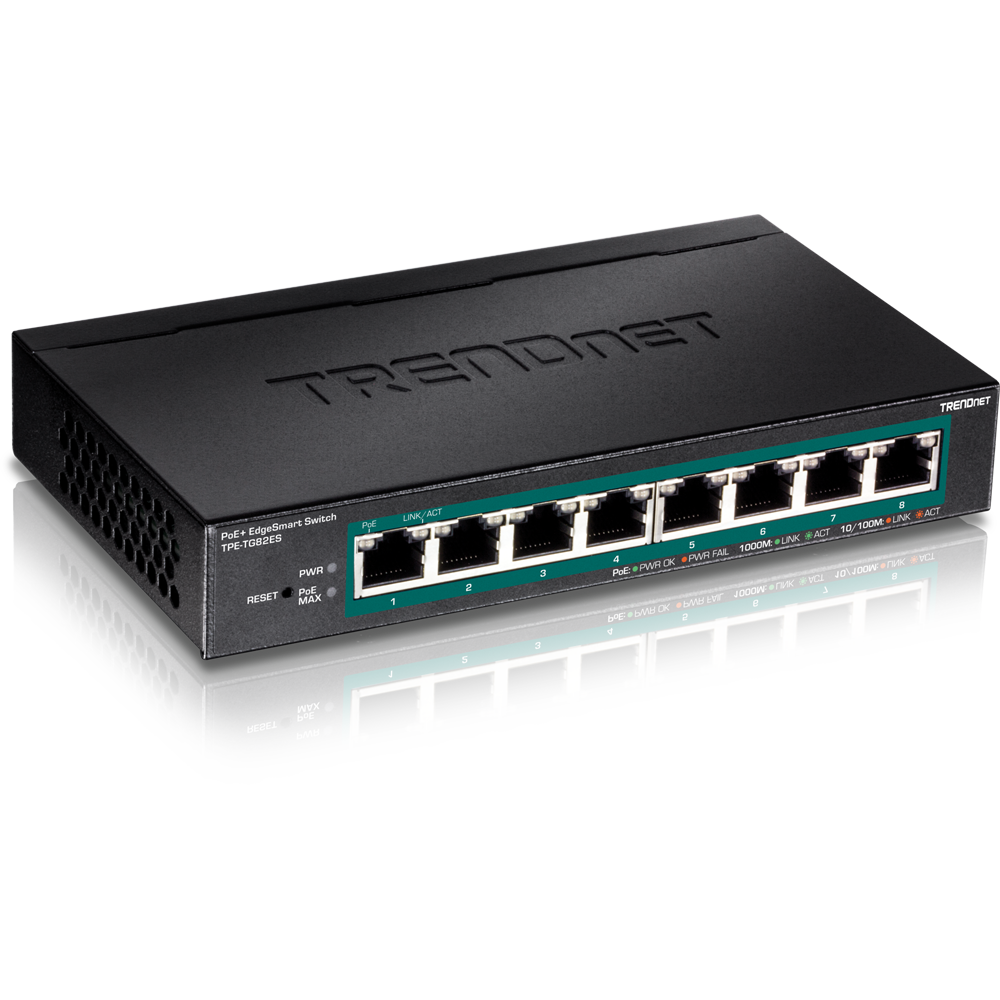

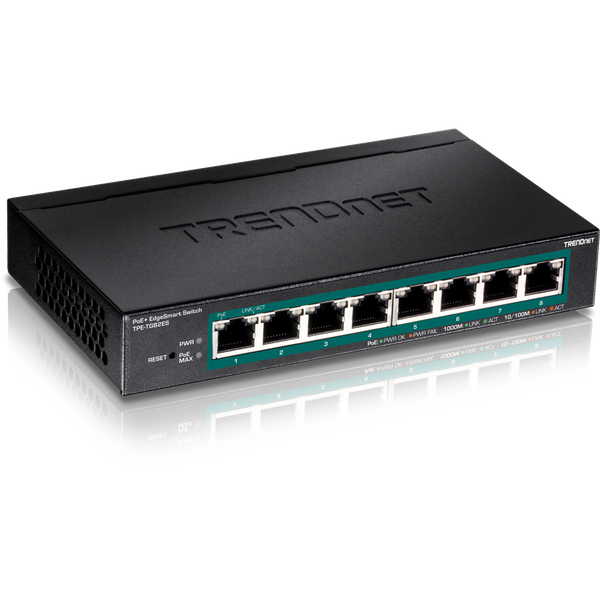

TPE-TG82ES (Version v1.0R)
- 8 x Gigabit PoE+ ports
- 64W PoE power budget
- Easy-to-use web-based management interface
- Supports static link aggregation, RSTP, VLAN, QoS, and IGMP Snooping
- Voice VLAN for VoIP applications
- Bandwidth control per port
- 16Gbps switching capacity
- IEEE 802.1p CoS with queue scheduling support
- Compact fanless design
- Wall mountable metal housing
| Standards | - IEEE 802.1d
- IEEE 802.1w
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3az
|
| Device Interface | - 8 x Gigabit PoE+ ports
- LED indicators
- Reset button
|
| Data Transfer Rate | - Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit Ethernet: 2000Mbps (full duplex)
|
| Performance | - Switch fabric: 16Gbps
- RAM buffer: 192KB
- MAC Address Table: 4K entries
- Jumbo Frames: 9KB
- Forwarding rate: 11.9Mpps (64-byte packet size)
|
| Management | - HTTP Web based GUI
- SNMP v1, v2c
- Cable diagnostic test
- Backup/Restore Configuration
- Upload Firmware
|
| Spanning Tree | - IEEE 802.1d STP (spanning tree protocol)
- IEEE 802.1w RSTP (rapid spanning tree protocol)
|
| Link Aggregation | - Static link aggregation (up to 2 groups)
|
| Quality of Service (QoS) | - Port-based QoS
- 802.1p Class of Service (CoS)
- Bandwidth Control/Rate Limiting per port (Min. Limit: 8Kbps)
- Queue Scheduling: Strict Priority (SP), Weighted Fair Queueing (WFQ)
|
| VLAN | - Port-based VLAN
- 802.1Q Tagged VLAN
- Up to 32 VLAN groups, ID Range 1-4094
- Private VLAN
- Asymmetric VLAN
- Voice VLAN (5 user defined OUIs)
|
| Multicast | - IGMP Snooping v1/2/3
- Block unknown multicast source
- Up to 32 multicast groups
|
| Port Mirror | |
| Storm Control | - Broadcast (Min. Limit: 8Kbps)
- Multicast (Min. Limit: 8Kbps)
- Loopback Detection
|
| Special Features | - PoE+ support
- Enable/disable 802.3az Power Saving
- Wall mountable
|
| Power | - Input: 100 – 240V AC, 50/60Hz, 1.2A
- Output: 54V DC, 1.67A external power adapter
- Max. consumption: 68.6W
|
| PoE | - PoE budget: 64W
- 802.3at: Up to 30W per port
- PoE Mode A: Pins 1,2 for power and pins 3,6 for power
- PD auto classification
- Over current/short circuit protection
|
| Fan / Acoustics | |
| MTBF | |
| Operating Temperature | - 0° – 40° C (32° – 104° F)
|
| Operating Humidity | |
| Dimensions | - 171 x 97.8 x 28.6mm (6.73 x 3.85 x 1.12 in.)
|
| Weight | |
| Certifications | |
| Warranty | |
| PACKAGE CONTENTS |
- TPE-TG82ES
- Quick Installation Guide
- Power adapter (54V DC, 1.67A)
|
