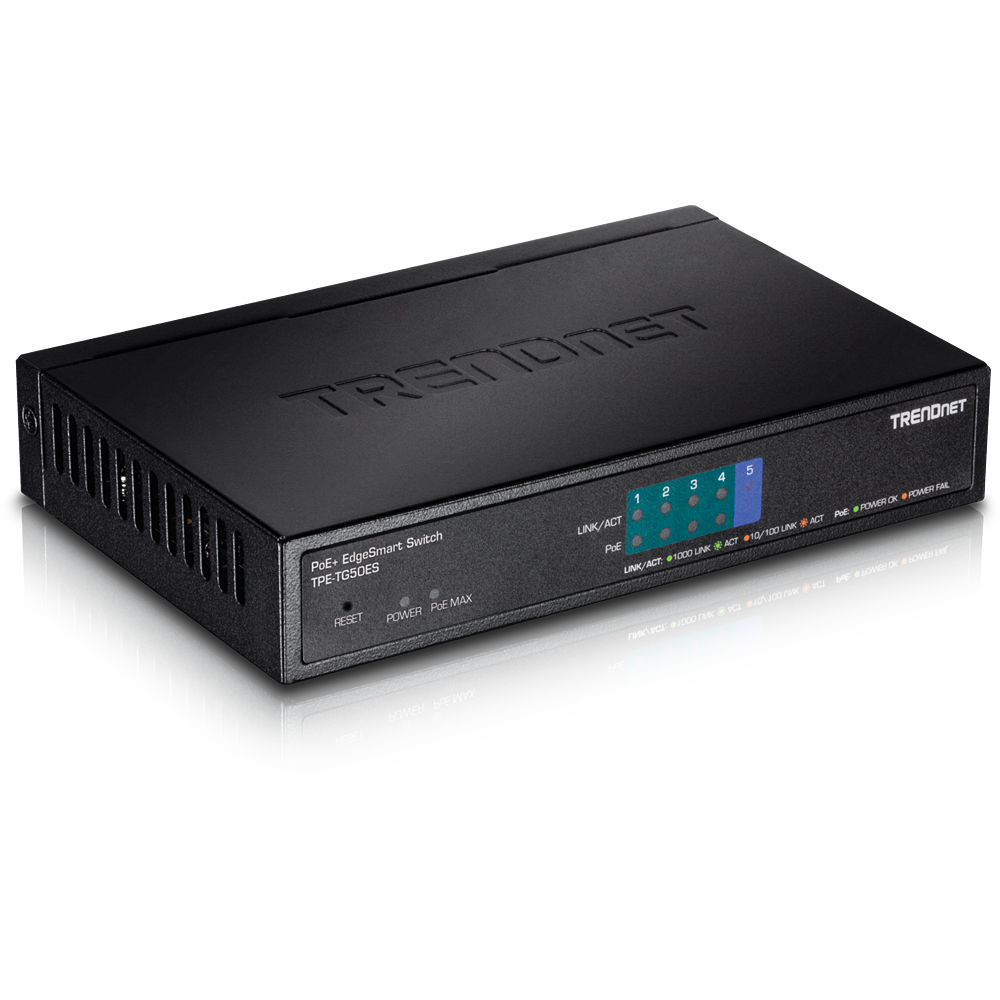

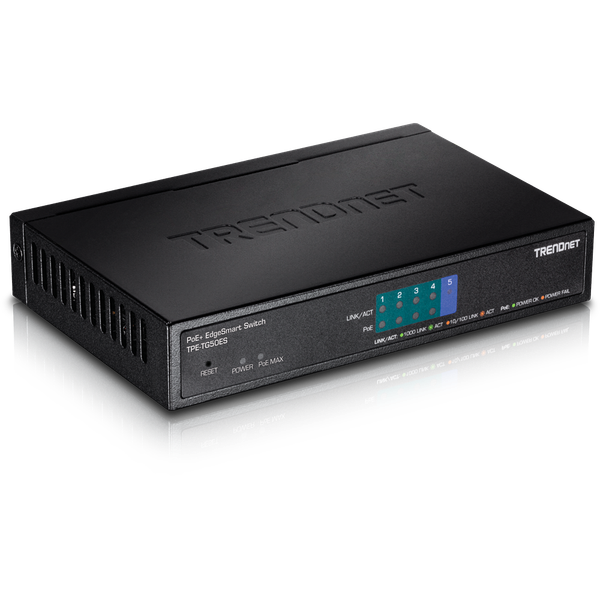

TPE-TG50ES (Version v1.0R)
- 4 x Gigabit PoE+ ports
- 1x Gigabit port
- 31W PoE power budget
- Easy-to-use web-based management interface
- Supports static link aggregation, RSTP, VLAN, QoS, and IGMP Snooping
- Voice VLAN for VoIP applications
- Bandwidth control per port
- 10Gbps switching capacity
- IEEE 802.1p QoS with queue scheduling support
- Compact fanless design
- Wall mountable metal housing
| Standards | - IEEE 802.1d
- IEEE 802.1w
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3az
|
| Device Interface | - 4 x Gigabit PoE+ ports
- 1 x Gigabit port
- LED indicators
- Reset button
|
| Data Transfer Rate | - Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2000Mbps (full duplex)
|
| Performance | - Packet Buffer: 125KB
- Switch Fabric: 10Gbps
- MAC Address Table: 2K entries
- Forwarding rate: 7.44Mpps (64-byte packet size)
- Jumbo Frame: 9KB
|
| Management | - HTTP Web based GUI
- SNMP v1, v2c
- Cable diagnostic test
- Backup/Restore Configuration
- Upload Firmware
|
| Spanning Tree | - IEEE 802.1d STP (spanning tree protocol)
- IEEE 802.1w RSTP (rapid spanning tree protocol)
|
| Link Aggregation | - Static link aggregation (only 1 group)
- Quality of Service (QoS)
- Port-based QoS
- 802.1p Class of Service (CoS)
- Bandwidth Control/Rate Limiting per port (Min. Limit: 8Kbps)
- Queue Scheduling: Strict Priority (SP), Weighted Fair Queueing (WFQ)
|
| VLAN | - Port-based VLAN
- 802.1Q Tagged VLAN
- Up to 32 VLAN groups, ID Range 1-4094
- Private VLAN
- Asymmetric VLAN
- Voice VLAN (5 user defined OUIs)
|
| Multicast | - IGMP Snooping v1/2/3
- Block unknown multicast source
- Up to 32 multicast groups
|
| Port Mirror | |
| Storm Control | - Broadcast (Min. Limit: 8Kbps)
- Multicast (Min. Limit: 8Kbps)
- Loopback Detection
|
| Special Features | - PoE+ support
- Enable/disable 802.3az Power Saving
- Wall mountable
|
| Power | - Input: 110-240V AC, 50/60Hz, 0.75A
- Output: 48V DC, 0.8A external power adapter
- Max. consumption: 34W
|
| PoE | - PoE budget: 31W
- PoE Mode A: Pins 1,2 for power and pins 3,6 for power
|
| MTBF | |
| Operating Temperature | - 0° – 40° C (32° – 104° F)
|
| Operating Humidity | |
| Dimensions | - 150 x 98 x 28mm (5.9 x 3.86 x 1.1 in.)
|
| Weight | |
| Certifications | |
| Warranty | |
| PACKAGE CONTENTS |
- TPE-TG50ES
- Quick Installation Guide
- Power brick (48V DC, 0.8A)
- Power cord
|
