| Standards | - IEEE 802.1d
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1X
- IEEE 802.1ab
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.3ad
- IEEE 802.3af (15.4 W / port)
- IEEE 802.3at (30 W / port)
- IEEE 802.3az
|

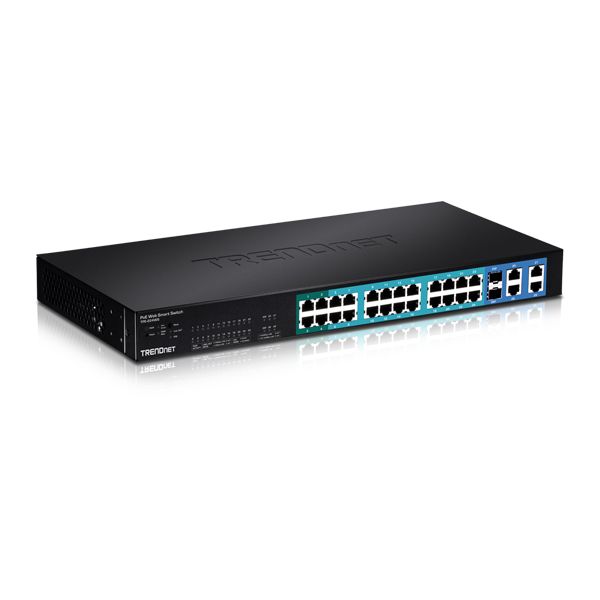

| Device Interface | - 4 x 10/100 Mbps PoE+ ports,
- 20 x 10/100 Mbps PoE ports
- 2 x Gigabit ports
- 2 x Shared Gigabit ports (RJ-45 or SFP)
- LED indicators (Mode Button displays Link / Activity or PoE port status)
- Reset Button
|
| Data Transfer Rate | - Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
- Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
- Gigabit Ethernet: 2000 Mbps (full duplex)
|
| Performance | - Switch fabric: 12.8 Gbps
- RAM buffer: 512 KB
- MAC Address Table: 8 K entries
- HOL Blocking Prevention
- Forwarding rates: 9.5 Mpps (64-byte packet size)
|
| Management | - HTTP / HTTPS (SSL v2 / 3 TLS) Web based GUI
- SNMP v1, v2c, v3
- RMON v1
- Static Unicast MAC Address
- Enable / disable 802.3az Power Saving
- LLDP
- Virtual Cable Test
- IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
|
| MIB | - MIB II RFC 1213
- Bridge MIB RFC 1493
- Bridge MIB Extension RFC 2674
- SNMPv2 MIB RFC 1907
- Ethernet Interface MIB RFC 1643
- Ethernet –like MIB RFC 2863
- Interface Group MIB RFC 2233
- MIB Traps Convention RFC 1215
- RMON MIB RFC 1757, RFC 2819
- 802.1p MIB RFC 2674
- RADIUS Client Authentication MIB RFC 2618
- LLDP-MIB IEEE 802.1ab
- Ping MIB RFC 2925, RFC 4560
|
| Spanning Tree | - IEEE 802.1D STP (Spanning Tree protocol)
- IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
- IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
|
| Link Aggregation | - Static Link Aggregation
- 802.3ad Dynamic LACP
|
| Quality of Service (QoS) | - 802.1p Class of Service (CoS)
- DSCP (Differentiated Services Code Point)
- Bandwidth Control per port
- Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
|
| VLAN | - Multiple management VLAN assignment
- Asymmetric VLAN
- 802.1Q Tagged VLAN
- Dynamic GVRP
- Up to 256 VLAN groups, ID Range 1-4094
- Private VLAN (Protected Ports)
- Voice VLAN (10 user defined OUIs)
|
| Multicast | - IGMP Snooping v1, v2, v3 (per VLAN)
- Static Multicast Address
- Up to 256 multicast entries
|
| Port Mirror | - RX, TX, or Both
- One to one
- Many to one
|
| Access Control | - 802.1X Port-Based Network Access Control, RADIUS, TACACS+
- Local Dial In User Authentication
- DHCP Snooping (per VLAN)
- Loopback Detection
- Duplicated Address Detection
- Denial of Service (DoS)
|
| ACL IPv4 L2-L4 & IPv6 | - MAC Address
- VLAN ID
- Ether Type (IPv4 only)
- IP Protocol 0-255
- TCP / UDP Port 1-65535
- 802.1p
- DSCP (IPv4 only)
- IPv6 Address (IPv6 only)
|
| Compatibility | - Optional Software Utility: Windows 10, 8.1, 8, 7, Vista, XP, Windows 2003 / 2008 Server
|
| Special Features | - PoE+
- IPv6
- 802.3az power saving
- Rack mountable
|
| Power | - Input: 100 - 240 V AC, 50/60 Hz, internal power supply
- Consumption: 239.7 W (max.)
|
| PoE | - PoE budget: 193 W
- 802.3at: Up to 30 W per port (ports 1-4)
- 802.3af: Up to 15.4 W per port (ports 5-24)
- Mode A: Pins 1,2 for power(+) and pins 3,6 for power(-)
- PD auto classification
- Over current / short circuit protection
|
| Fan / Acoustics | - Quantity: 2
- Noise Level: 54 dB(A) (max.)
|
| MTBF | |
| Operating Temperature | |
| Operating Humidity | |
| Dimensions | - 440 x 210 x 44.45 mm (17.3 x 8.27 x 1.75 in.)
- Rack mountable 1U height
|
| Weight | |
| Certifications | |
| Warranty | |
