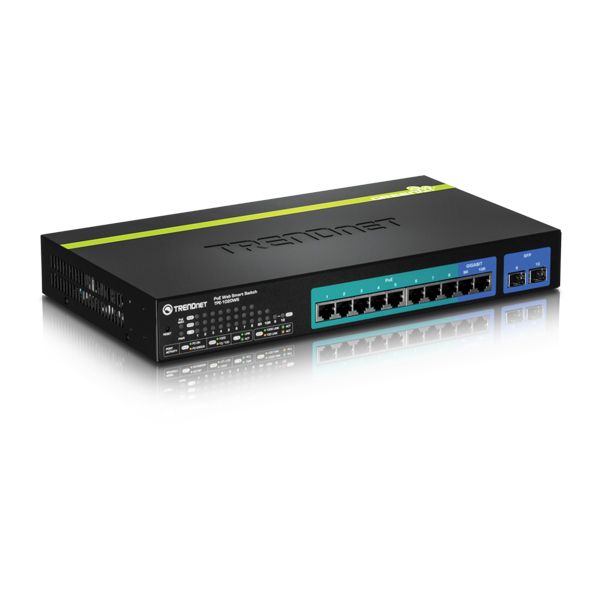

10-Port Gigabit Web Smart PoE+ Switch

  • Thương hiệu: TRENDnet
  • Loại: SWITCH
  • SKU: Chưa rõ

Tại Nhà phân phối Viễn Sơn: 0₫

TPE-1020WS   (Version v1.2R)- 8 x PoE+ Gigabit ports- 2 x Gigabit Ethernet ports and 2 x shared SFP slots- Up to 30 Watts per port with a 75 Watts...
  • Giao hàng
    Giao hàng
    Miễn phí giao hàng Tp. HCM
  • Sản phẩm
    Sản phẩm
    Cam kết chính hãng 100%
    Phát hiện hàng giả đền 200%
  • Đổi trả
    Đổi trả
    Đổi mới trong vong 30 ngày
  • Hỗ trợ
    Hỗ trợ
    Hotline: 083 832 6085
    Thứ 2 - 7: 08:00 - 17:00
    Thứ 7: 08:00 - 12:00

Chia sẻ ngay

TPE-1020WS   (Version v1.2R)

- 8 x PoE+ Gigabit ports

- 2 x Gigabit Ethernet ports and 2 x shared SFP slots

- Up to 30 Watts per port with a 75 Watts total power budget

- 20 Gbps switching capacity

- Rack mountable


Standards
  • IEEE 802.1d
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.1X
  • IEEE 802.1ab
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.3ab
  • IEEE 802.3ad
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3az
Device Interface
  • 8 x Gigabit PoE+ ports (ports 1-8)
  • 2 x Gigabit Ethernet ports (ports 9-10)
  • 2 x Shared SFP slots (shared with ports 9-10)
  • LED indicators
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit Ethernet: 2000 Mbps (full duplex)
Performance
  • Switch fabric: 20 Gbps
  • Ram buffer: 8 Mbits
  • MAC Address Table: 16K entries
  • Jumbo Frames: 10 Kbytes
  • HOL Blocking Prevention
  • Forwarding rates: 14.88 Mppst
Management
  • HTTP/HTTPS (SSL v2/3 TLS) Web based GUI
  • SNMP v1, v2c, v3
  • RMON v1
  • Static Unicast MAC Address
  • Enable/disable 802.3az Power Saving
  • LLDP
  • Virtual Cable Test
  • IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
MIB
  • MIB II RFC 1213
  • Bridge MIB RFC 1493
  • Bridge MIB Extension RFC 2674
  • SNMPv2 MIB RFC 1907
  • Ethernet Interface MIB RFC 1643
  • Ethernet –like MIB RFC 2863
  • Interface Group MIB RFC2233
  • MIB Traps Convention RFC 1215
  • RMON MIB RFC 1757, RFC 2819
  • 802.1p MIB RFC 2674
  • RADIUS Client Authentication MIB RFC 2618
  • LLDP-MIB IEEE 802.1ab
  • Ping MIB RFC 2925, RFC 4560
Spanning Tree
  • IEEE 802.1D STP (Spanning Tree protocol)
  • IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
  • IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
Link Aggregation
  • Static Link Aggregation
  • 802.3ad Dynamic LACP
Quality of Service (QoS)
  • 802.1p Class of Service (CoS)
  • DSCP (Differentiated Services Code Point)
  • Bandwidth Control per port
  • Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
VLAN
  • Multiple management VLAN assignment
  • Asymmetric VLAN
  • 802.1Q Tagged VLAN
  • Dynamic GVRP
  • Up to 256 VLAN groups, ID Range 1-4094
  • Private VLAN (Protected Ports)
  • Voice VLAN (10 user defined OUIs)
Multicast
  • IGMP Snooping v1, v2, v3 (per VLAN)
  • Static Multicast Address
  • Up to 256 multicast entries
Port Mirror
  • RX, TX, or Both
  • One to one
  • Many to one
Encryption
  • 802.1X Port-Based Network Access Control, RADIUS, TACACS+
  • Local Dial In User Authentication
  • DHCP Snooping (per VLAN)
  • Loopback Detection
  • Duplicated Address Detection
  • Trusted Host
  • Denial of Service (DoS)
ACL IPv4 L2-L4 & IPv6
  • MAC Address
  • VLAN ID
  • Ether Type (IPv4 only)
  • IP Protocol 0-255
  • TCP/UDP Port 1-65535
  • 802.1p
  • DSCP (IPv4 only)
  • IPv6 Address (IPv6 only)
Compatibility
  • Optional Software Utility: Windows® 8.1 (32/64-bit), 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), Windows® 2003/2008 Server (32/64-bit)
Special Features
  • PoE+
  • Fanless design
  • IPv6
  • 802.3az power saving
  • Rack mountable
Power
  • Input: 100 - 240 V AC, 50/60 Hz, internal power supply
  • Consumption: 92.3 Watts (Max)
  • PoE budget: 75 Watts
Fan/Acoustics
  • Quantity: 0
  • Noise Level: 0 dB(A) (max.)
MTBF
  • 545,798 hours
Operating Temperature
  • 0 – 45 °C (32 - 113 °F)
Operating Humidity
  • Max 90% non-condensing
Dimensions
  • 330 x 183 x 44.45 mm (13 x 7.2 x 1.75 in.)
  • Rack mountable 1U height
Weight
  • 1.9 kg (4.1 lbs.)
Certifications
  • CE
  • FCC
Warranty
  • 3-year limited
PACKAGE CONTENTS
  • TPE-1020WS
  • Quick Installation Guide
  • CD-ROM (Utility & User's Guide)
  • Power cord (1.8 m/6 ft.)
  • Rack mount kit
