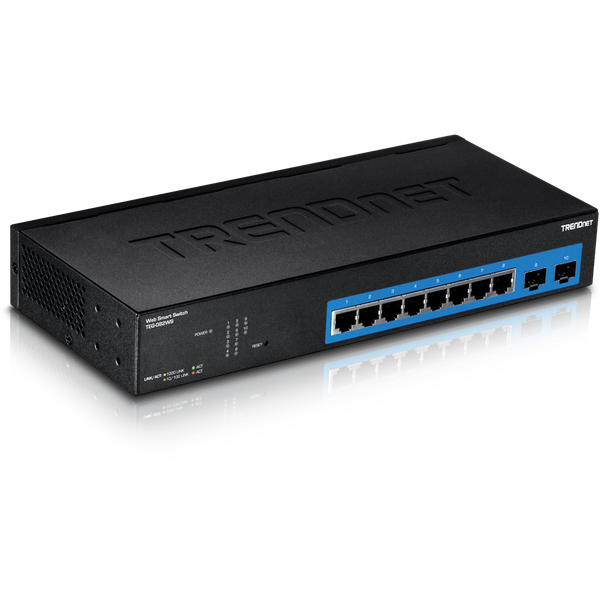

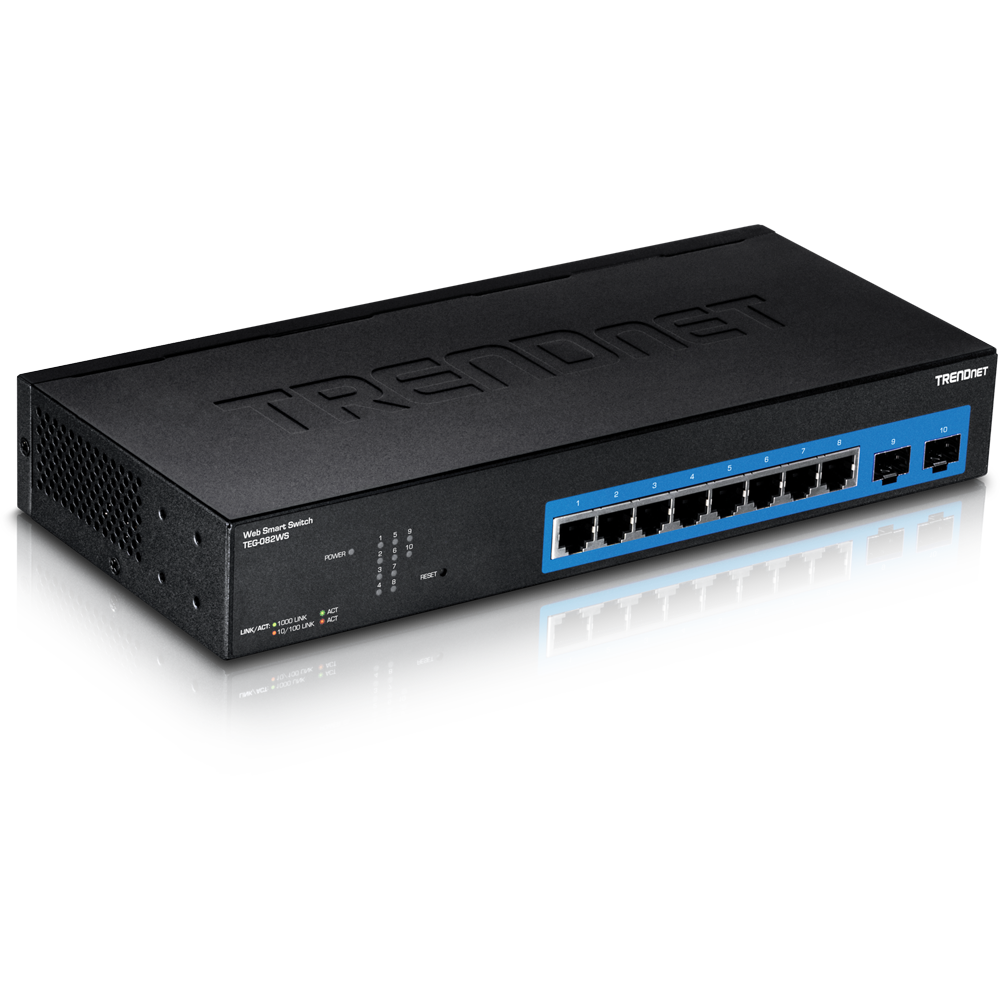

10-Port Gigabit Web Smart Switch

  • Thương hiệu: TRENDnet
  • Loại: SWITCH
  • SKU: Chưa rõ

Tại Nhà phân phối Viễn Sơn: 0₫

TEG-082WS   (Version v2.1R)- 8 x Gigabit ports- 2 x Gigabit SFP Slots- Easy-to-use web-based management interface- Supports IPv6, LACP, VLAN, QoS, and IGMP/MLD Snooping- IPv4/IPv6 Static Routing support- Bandwidth...
  • Giao hàng
    Giao hàng
    Miễn phí giao hàng Tp. HCM
  • Sản phẩm
    Sản phẩm
    Cam kết chính hãng 100%
    Phát hiện hàng giả đền 200%
  • Đổi trả
    Đổi trả
    Đổi mới trong vong 30 ngày
  • Hỗ trợ
    Hỗ trợ
    Hotline: 083 832 6085
    Thứ 2 - 7: 08:00 - 17:00
    Thứ 7: 08:00 - 12:00

Chia sẻ ngay

TEG-082WS   (Version v2.1R)

- 8 x Gigabit ports

- 2 x Gigabit SFP Slots

- Easy-to-use web-based management interface

- Supports IPv6, LACP, VLAN, QoS, and IGMP/MLD Snooping

- IPv4/IPv6 Static Routing support

- Bandwidth control per port

- Private, Multicast, and Voice VLAN support

- 20Gbps switching capacity

- IEEE 802.1p QoS with queue scheduling support

- Fanless design


Standards
  • IEEE 802.1d
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.1X
  • IEEE 802.1ab
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.3ab
  • IEEE 802.3ad
  • IEEE 802.3az
Device Interface
  • 8 x Gigabit ports
  • 2 x SFP slots
  • LED indicators
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit Ethernet: 2000 Mbps (full duplex)
Performance
  • Switch fabric: 20 Gbps
  • RAM buffer: 4.1 Mbits
  • MAC Address Table: 8K entries
  • Jumbo Frames: 10 Kbytes
  • HOL Blocking Prevention
  • Forwarding rate: 14.9 Mpps (64-byte packet size)
Management
  • CLI (Telnet / SSHv2) for basic administration
  • HTTP/HTTPS (SSL v2/3 TLS) Web based GUI
  • SNMP v1, v2c, v3
  • RMON v1
  • Static Unicast MAC Address
  • Enable/disable 802.3az Power Saving
  • LLDP and LLDP-MED
  • Virtual Cable Diagnostics Test
  • IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
  • Dual image and configuration
  • TC Root/Protect
MIB
  • IP Forward Table MIB RFC 1354
  • RMON MIB RFC 1271
  • IPv4 MIB RFC 1213
  • IPv6 MIB RFC 2465
  • GVRP MIB IEEE 802.1Q-VLAN
  • LA MIB IEEE 802.3ad
  • LLDP MIB IEEE 802.1ab
  • IGMP Snooping MIB RFC 2933
  • MLD Snooping MIB RFC 3019
  • Private VLAN MIB IEEE 802.1Q
  • DHCP SNOOP MIB RFC 2026
  • QoS MIB RFC 4323
  • SNMP MIB RFC 3415
  • STP MIB RFC 4318
  • PNAC MIB IEEE 802.1x
  • VLAN MIB IEEE 802.1q
  • DNS MIB RFC 1611
  • ACL MIB
  • Bandwidth CTRL MIB
  • LBD MIB
  • Mirror MIB
  • IPv6 NEIGHBOR MIB
  • SNTP MIB
  • Storm CTRL MIB
  • Statistics MIB
  • Tool MIB
  • Voice VLAN MIB
  • DoS MIB
Spanning Tree
  • IEEE 802.1D STP (Spanning Tree protocol)
  • IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
  • IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
Link Aggregation
  • Static Link Aggregation
  • 802.3ad Dynamic LACP
Quality of Service (QoS)
  • 802.1p Class of Service (CoS)
  • DSCP (Differentiated Services Code Point)
  • Bandwidth Control per port
  • Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
VLAN
  • Multiple management VLAN assignment
  • Asymmetric VLAN
  • 802.1Q Tagged VLAN
  • Dynamic GVRP
  • MAC-based VLAN
  • Protocol-based VLAN
  • Up to 256 VLAN groups, ID Range 1-4094
  • Private VLAN (Protected Ports)
  • Voice VLAN (10 user defined OUIs)
Multicast
  • IGMP Snooping v1, v2, v3
  • MLD Snooping v1, v2
  • IGMP fast leave
  • MVR (Multicast VLAN Registration)
  • Static Multicast Address
  • Up to 256 multicast entries
Port Mirror
  • RX, TX, or Both
  • Many to one
Access Control
  • 802.1X Port-Based Network Access Control , RADIUS, TACACS+
  • Local Dial In User Authentication
  • DHCP Snooping (per VLAN)
  • Loopback Detection
  • Duplicated Address Detection
  • Trusted Host
  • Denial of Service (DoS)
  • IP MAC port binding
  • Dynamic ARP inspection
  • Block unknown multicast
ACL IPv4 L2-L4 & IPv6
  • MAC Address
  • VLAN ID
  • Ether Type (IPv4 only)
  • IP Protocol 0-255
  • TCP/UDP Port 1-65535
  • 802.1p
  • DSCP (IPv4 only)
  • IPv6 Address (IPv6 only)
Layer 3 Features
  • IPv4 / IPv6 static routing
  • IP interfaces: Up to 6
  • Routing table entries: Up to 32 (IPv4 / IPv6)
  • ARP table (up to 128 entries)
  • Inter-VLAN routing
Compatibility
  • Optional Software Utility: Windows® 10, 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server
Special Features
  • Fanless Design
  • IPv6
  • 802.3az power saving
  • Rack mountable
Power
  • Input: 100 - 240 V AC, 50/60 Hz, internal power supply
  • Consumption: 7.1 Watts (max.)
Fan/Acoustics
  • Quantity: 0
  • Noise Level: 0 dB(A) (max.)
MTBF
  • 1,092,872 hours
Operating Temperature
  • -5 – 50°C (23 - 122°F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 280 x 125.8 x 44 mm (11 x 5 x 1.74 in.)
  • Rack mountable 1U height
Weight
  • 0.98 kg (2.2 lbs.)
Certifications
  • CE
  • FCC
Warranty
  • 3 year
PACKAGE CONTENTS
  • TEG-082WS
  • Quick Installation Guide
  • CD-ROM (Utility & User's Guide)
  • Power cord (1.8 m/6 ft.)
  • Rack mount kit
