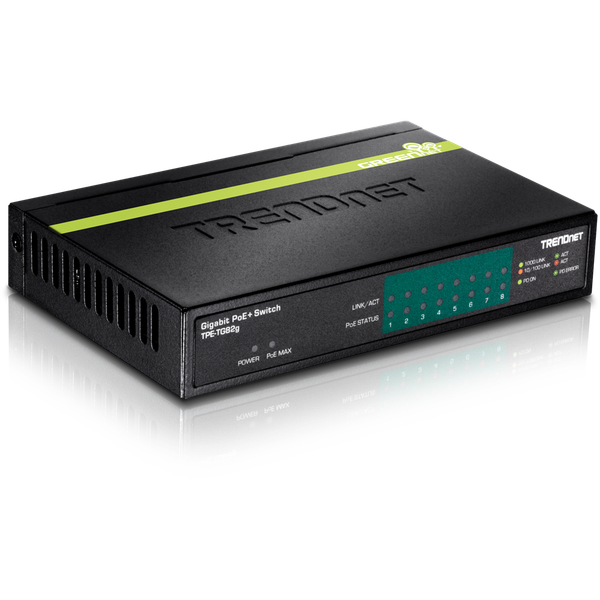

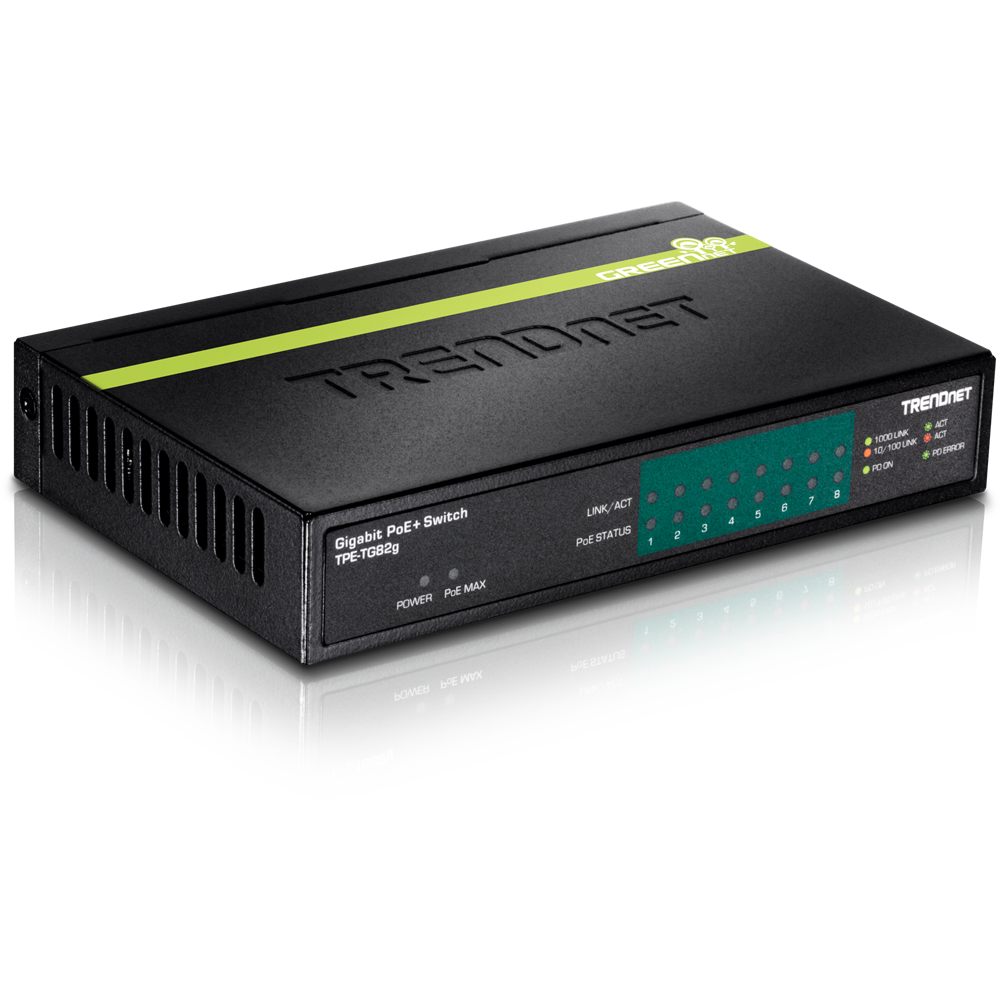

TPE-TG82g (Version v1.0R)
- 8 x Gigabit PoE+ ports
- 61W PoE budget
- 16Gbps switching capacity
- Sturdy metal switch
- Plug and Play installation
- Use with TRENDnet's PoE Splitter to network and power non-PoE devices
| Standards | - IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3az
- IEEE 802.1p
|
| Device Interface | - 8 x Gigabit PoE/PoE+ ports
- LED indicators
|
| Data Transfer Rate | - Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
- Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
- Gigabit: 2000 Mbps (full duplex)
|
| Performance | - Data RAM Buffer: 128KB
- Switch Fabric: 16Gbps
- MAC Address Table: 8K entries
- Forwarding rate: 11.9Mpps (64-byte packet size)
- Jumbo Frame: 9K
|
| Power | - Input: 110-240V AC, 50/60 Hz 1.2A
- Output: 54 V DC, 1.67 A
- Consumption: 36 Watts (Max.)
|
| PoE | - PoE budget: 61W
- Pin 3,6 for power+ and pin 1,2 for power- (mode B)
|
| Operating Temperature | |
| Operating Humidity | |
| Dimensions | - 150 x 95 x 30 mm (5.9 x 3.7 x 1.2 in.)
|
| Weight | |
| Certifications | |
| Warranty | |
| PACKAGE CONTENTS |
- TPE-TG82g
- Quick Installation Guide
- Power Brick (54V DC, 1.67A)
- Power cord
|
