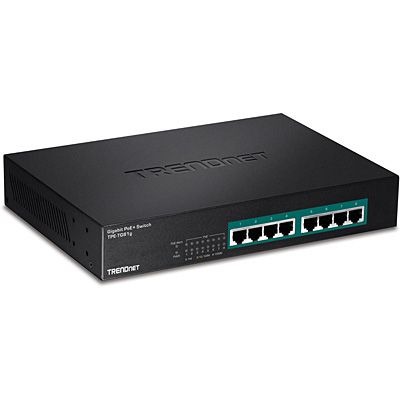

TPE-TG81g (Version v2.1R)
- 8 x Gigabit PoE+ ports
- Internal power supply
- Up to 30W per port with 110W total power budget
- Reduces equipment cost by delivering data and power over existing network cables
- Fanless design for silent operation
- 16Gbps switching capacity
- Sturdy rack mountable metal housing
- Use with TRENDnet's PoE splitter to network and power non-PoE devices
| Standards | - IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3az
- IEEE 802.1Q
|
| Device Interface | - 8 x Gigabit PoE/PoE+ ports
- LED indicators
|
| Data Transfer Rate | - Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2000Mbps (full duplex)
|
| Performance | - Packet Buffer: 192KB
- Switch Fabric: 16Gbps
- MAC Address Table: 4K entries
- Forwarding Rate: 11.9Mpps (64-byte packet size)
- Jumbo Frame: 9K
|
| Power | - Input: 110-240V AC, 50/60 Hz, internal power supply
- Max. Consumption: 130W
|
| PoE | - PoE budget: 110W
- Pin 1, 2 for power+ and pin 3, 6 for power- (mode A)
|
| Fan/Acoustics | |
| Operating Temperature | - 0° – 40° C (32° - 104° F)
|
| Operating Humidity | |
| Dimensions | - 265 x 183 x 44mm (10.4 x 7.2 x 1.7 in.)
|
| Weight | |
| Certifications | |
| Warranty | |
| PACKAGE CONTENTS |
- TPE-TG81g
- Quick Installation Guide
- Rackmount kit
- Power cord
|
