| Standards | - IEEE 802.1d
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1X
- IEEE 802.1ab
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.3ad
- IEEE 802.3af (15.4 Watts / port)
- IEEE 802.3at (30 Watts / port)
- IEEE 802.3az
|

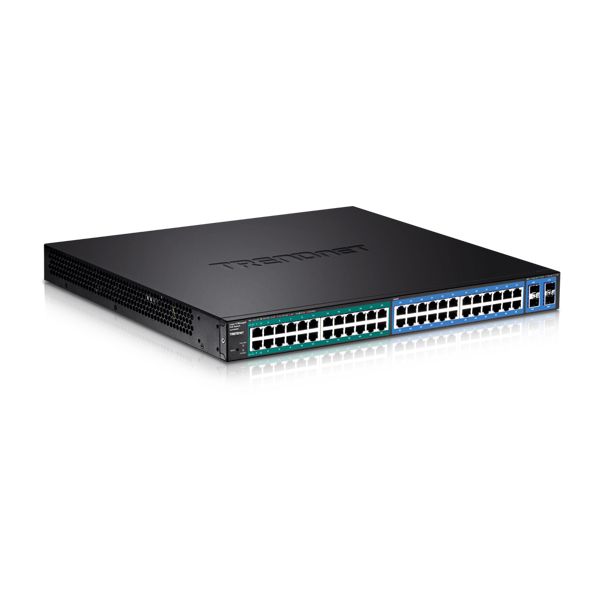

| Device Interface | - 24 x Gigabit PoE+ ports
- 24 x Gigabit ports
- 4 x shared Gigabit SFP slots
- 1 x RJ-45 console port
- LED indicators
- Reset button
|
| Data Transfer Rate | - Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
- Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
- Gigabit Ethernet: 2000 Mbps (full duplex)
|
| Performance | - Switch fabric: 96 Gbps
- RAM buffer: 1 MB
- MAC Address Table: 16K entries
- Jumbo Frames: 10 KB
- HOL Blocking Prevention
- Forwarding rate: 71.4 Mpps (64-byte packet size)
|
| Management | - CLI (Console / Telnet / SSHv2)
- HTTP / HTTPS (SSL v2 / 3 TLS) Web based GUI
- SNMP v1, v2c, v3
- RMON v1
- Static Unicast MAC Address
- Enable / disable 802.3az Power Saving
- LLDP
- Virtual Cable Test
- IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
|
| MIB | - MIB II RFC 1213
- Bridge MIB RFC 1493
- Bridge MIB Extension RFC 2674
- SNMPv2 MIB RFC 1907
- Ethernet Interface MIB RFC 1643
- Ethernet –like MIB RFC 2863
- Interface Group MIB RFC 2233
- MIB Traps Convention RFC 1215
- RMON MIB RFC 1757, RFC 2819
- 802.1p MIB RFC 2674
- RADIUS Client Authentication MIB RFC 2618
- LLDP-MIB IEEE 802.1ab
- Ping MIB RFC 2925, RFC 4560
|
| Spanning Tree | - IEEE 802.1D STP (Spanning Tree protocol)
- IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
- IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
|
| Link Aggregation | - Static Link Aggregation
- 802.3ad Dynamic LACP
|
| Quality of Service (QoS) | - 802.1p Class of Service (CoS)
- DSCP (Differentiated Services Code Point)
- Bandwidth Control per port
- Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
|
| VLAN | - Multiple management VLAN assignment
- Asymmetric VLAN
- 802.1Q Tagged VLAN
- Dynamic GVRP
- Up to 256 VLAN groups, ID Range 1-4094
- Private VLAN (Protected Ports)
- Voice VLAN (10 user defined OUIs)
|
| Multicast | - IGMP Snooping v1, v2, v3
- Static Multicast Address
- Up to 256 multicast entries
- MLD Snooping v1, v2
|
| Port Mirror | - RX, TX, or Both
- One to one
- Many to one
|
| Access Control | - 802.1X Port-Based Network Access Control, RADIUS, TACACS+
- Local Dial In User Authentication
- DHCP Snooping
- Loopback Detection
- Duplicated Address Detection
- Trusted Host
- Denial of Service (DoS)
|
| ACL IPv4 L2-L4 & IPv6 | - MAC Address
- VLAN ID
- Ether Type (IPv4 only)
- IP Protocol 0-255
- TCP / UDP Port 1-65535
- 802.1p
- DSCP (IPv4 only)
- IPv6 Address (IPv6 only)
|
| Management Utility | - Windows 10, 8.1, 8, 7, Vista, XP, Windows 2003 / 2008 Server
|
| Special Features | |
| Power | - Input: 100 – 240 V AC, 50/60 Hz, internal power supply
- Consumption: 425.6 W (max.)
|
| PoE | - PoE budget: 370 W
- 802.3at: Up to 30 W per port (ports 1-24)
- Mode A: Pins 1,2 for power(+) and pins 3,6 for power(-)
- PD auto classification
- Over current / short circuit protection
|
| Smart Fan / Acoustics | - Quantity: 4
- Noise Level: 56 dB(A) (max.)
|
| MTBF | |
| Operating Temperature | |
| Operating Humidity | |
| Dimensions | - 440 x 430 x 44.45 mm (17.3 x 16.93 x 1.75 in.)
- Rack mountable 1U height
|
| Weight | |
| Certifications | |
| Warranty | |
