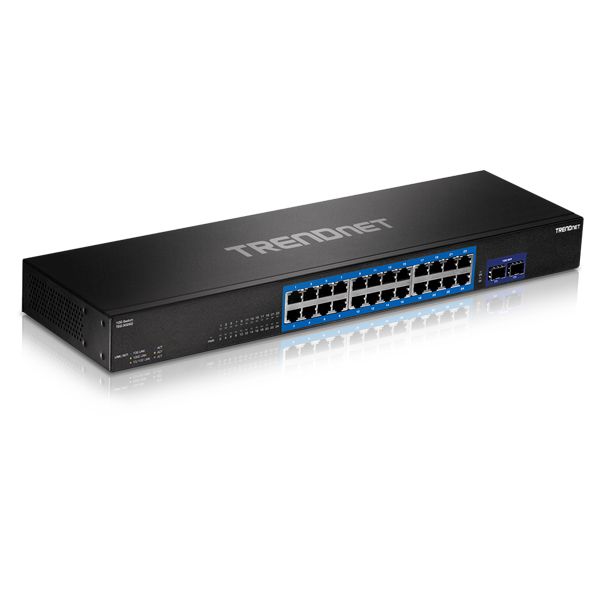

TEG-30262 (Version v1.0R)
- 24 x Gigabit ports
- 2 x 10G SFP+ slots
- 88Gbps switching capacity
- 1U rack mountable (brackets included)
- Fanless Design
Standards | - IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.1p
- IEEE 802.3ae
- IEEE 802.3az
|
Device Interface | - 24 x Gigabit ports
- 2 x 10G SFP+ slots
- LED indicators
|
Data Transfer Rate | - Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit Ethernet: 2000Mbps (full duplex)
- 10 Gigabit Ethernet: 20Gbps (full duplex)
|
Performance | - Switching Capacity: 88Gbps
- RAM Buffer: 1.5MB
- MAC Address Table: 16K entries
- Forwarding Rate: 65.5Mpps (64-byte packet size)
- Jumbo Frames: 10KB
|
Power | - Input: 100 – 240V AC, 50/60Hz, internal power supply
- Max. Consumption: 18.9W
|
Fan/Acoustics | |
Operating Temperature | - 0° – 40° C (32° – 104° F)
|
Operating Humidity | |
Dimensions | - 440 x 130 x 44mm (1.57 x 5.1 x 1.73 in.)
|
Weight | |
Certifications | |
Warranty | |
PACKAGE CONTENTS |
- TEG-30262
- Quick Installation Guide
- Rackmount kit
- Power cord (1.8m/6 ft.)
|
