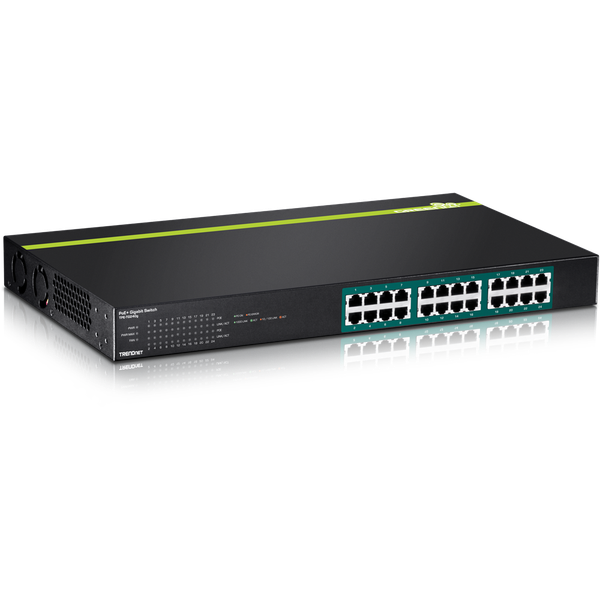

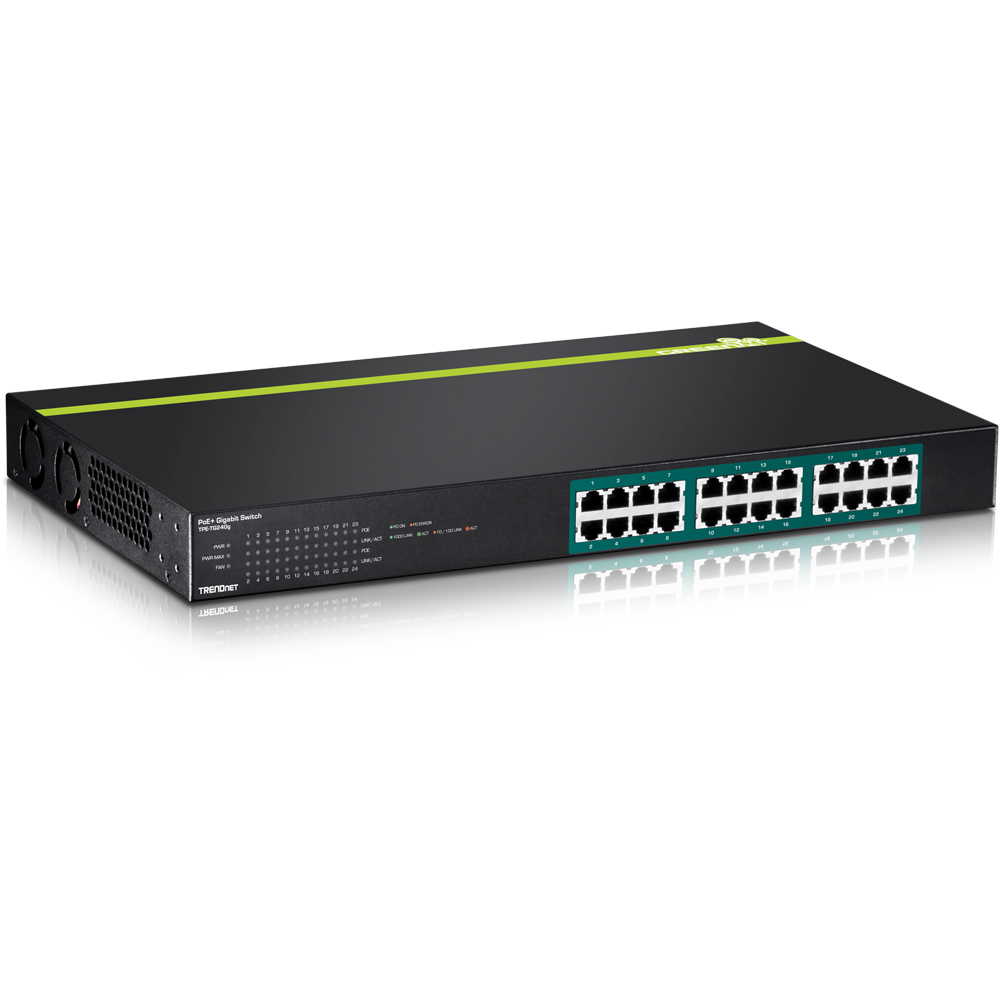

TPE-TG240g (Version v1.1R)
- 24 x Gigabit PoE+ ports
- 370 Watts total power budget
- 48 Gbps switching capacity
- Sturdy metal switch
- Rack mount brackets included
| Standards | - IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3az
|
| Device Interface | - 24 x Gigabit PoE / PoE+ ports
- LED indicators
|
| Data Transfer Rate | - Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
- Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
- Gigabit: 2000 Mbps (full duplex)
|
| Performance | - Data RAM Buffer: 512 KB
- Switch Fabric: 48 Gbps
- MAC Address Table: 8 K entries
- Forwarding rate: 35.7 Mpps (64-byte packet size)
- Jumbo Frame: 10 KB
|
| Power | - Input: 110-240 V AC, 50/60 Hz, 0.75 A
- Consumption: 36 Watts (Max. without PD)
|
| PoE | - PoE budget: 370 Watts
- Pin 1,2 for power+ and pin 3,6 for power- (mode A)
- Over current protection
- Circuit sorting protection
|
| Operating Temperature | |
| Operating Humidity | |
| Dimensions | - 440 x 250 x 44 mm (17.3 x 9.8 x 1.7 in.)
|
| Weight | |
| Certifications | |
| Warranty | |
| PACKAGE CONTENTS |
- TPE-TG240g
- Quick Installation Guide
- Rack mount kit
- Power cord
|
