| Standards | - IEEE 802.1d
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1X
- IEEE 802.1ab
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.3ad
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3az
- IEEE 802.3bt (draft)
|

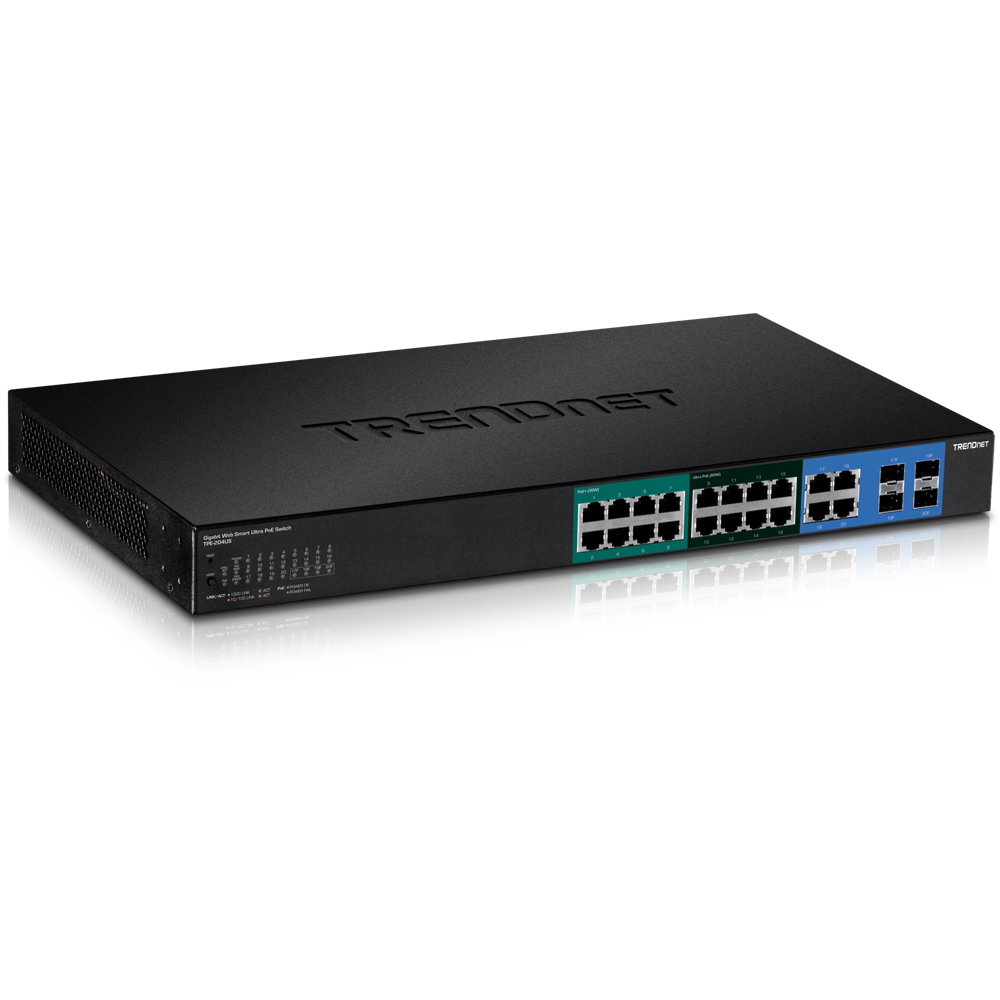

| Device Interface | - 8 x Gigabit Ultra PoE ports
- 8 x Gigabit PoE+ ports
- 4 x Gigabit shared ports (RJ-45 or SFP)
- LED indicators
- LED Display mode button (toggles LED indicators to display link/activity or PoE only port status)
|
| Data Transfer Rate | - Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit Ethernet: 2000Mbps (full duplex)
|
| Performance | - Switch fabric: 40Gbps
- RAM buffer: 512KB
- MAC Address Table: 8K entries
- Jumbo Frames: 10KB
- HOL Blocking Prevention
- Forwarding rate: 29.8Mpps (64-byte packet size)
|
| Management | - HTTP/HTTPS (SSL v2/3 TLS) web-based GUI
- SNMP v1, v2c, v3
- RMON v1
- Static Unicast MAC address
- Enable/disable 802.3az power saving
- LLDP and LLDP-MED
- Virtual cable diagnostics test
- IPv6: IPv6 neighbor discovery, IPv6 Static IP, DHCPv6, auto configuration
|
| MIB | - IP FORWARD TABLE MIB RFC 1354
- RMON MIB RFC 1271
- IPV4 MIB RFC 1213
- IPV6 MIB RFC 2465
- GVRP MIB IEEE 802.1Q-VLAN
- LA MIB IEEE 802.3ad
- LLDP MIB IEEE 802.1AB
- IGMP SNOOPING MIB RFC 2933
- MLD SNOOPING MIB RFC 3019
- PRIVATE VLAN MIB IEEE 802.1Q
- DHCPSNOOP MIB RFC 2026
- QOS MIB RFC 4323
- SNMP MIB RFC 3415
- STP MIB RFC 4318
- PNAC MIB IEEE 802.1x
- VLAN MIB IEEE 802.1q
- DNS MIB RFC 1611
- ACL MIB
- BANDWIDTH CTRL MIB
- LBD MIB
- MIRROR MIB
|
| IPV6 NEIGHBOR MIB | - SNTP MIB
- STORM CTRL MIB
- STATISTICS MIB
- TOOL MIB
- VOICE VLAN MIB
- DOS MIB
|
| Spanning Tree | - IEEE 802.1d STP (Spanning Tree protocol)
- IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
- IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
|
| Link Aggregation | - 802.3ad Dynamic LACP
- Static Link Aggregation
|
| Quality of Service (QoS) | - 802.1p Class of Service (CoS)
- DSCP (Differentiated Services Code Point)
- Bandwidth control per port
- Queue Scheduling: strict priority, weighted round robin (WRR)
|
| VLAN | - Multiple management VLAN assignment
- Asymmetric VLAN
- 802.1Q Tagged VLAN
- GVRP
- Up to 256 VLAN groups, ID Range 1-4094
- Private VLAN (Protected Ports)
- Voice VLAN (10 user defined OUIs)
|
| Multicast | - IGMP Snooping v1, v2, v3
- Static Multicast Address
- Up to 256 multicast entries
|
| Port Mirror | - Rx, Tx, or Both
- One to one, many to one
|
| Encryption | - 802.1X Port-Based Network Access Control , RADIUS, TACACS+
- Local Dial-in User Authentication
- DHCP Snooping
- Loopback Detection
- Duplicated Address Detection
- Trusted Host
- Denial of Service (DoS)
|
| ACL IPv4 L2-L4 & IPv6 | - MAC Address
- VLAN ID
- Ether Type (IPv4 only)
- IP Protocol 0-255
- TCP/UDP Port 1-65535
- 802.1p
- DSCP (IPv4 only)
- IPv6 Address (IPv6 only)
|
| Compatibility | - Optional Software Utility: Windows® 10, 8.1, 8, 7, and Windows® Server 2003/2008/2012/2016
|
| Power | - Input: 100 – 240V AC, 50/60Hz, internal power supply
- Max. consumption: 25.2W (No PoE load)
|
| PoE | - PoE budget: 370W
- 802.3at: up to 30W per port (ports 1-8)
- 802.3bt: up to 60W per port (ports 9-16)
- Mode A: Pins 1,2 for power+ and pins 3,6 for power – (mode A)
- PD auto/manual classification
- PoE port priority
- PoE power scheduling
- Over current/short circuit protection
|
| Fan/Acoustics | - Quantity: 2
- Max Noise Level: 52.8 dBA
|
| MTBF | |
| Operating Temperature | |
| Operating Humidity | |
| Dimensions | - 440 x 250 x 44mm (17.3 x 9.8 x 1.74 in.)
- Rack mountable 1U height
|
| Weight | |
| Certifications | |
| Warranty | |
